6 Pcs Truck Clutch Alignment Tool Kit, 51136
-
Code:4800
-
Weight:0.000 Kgs

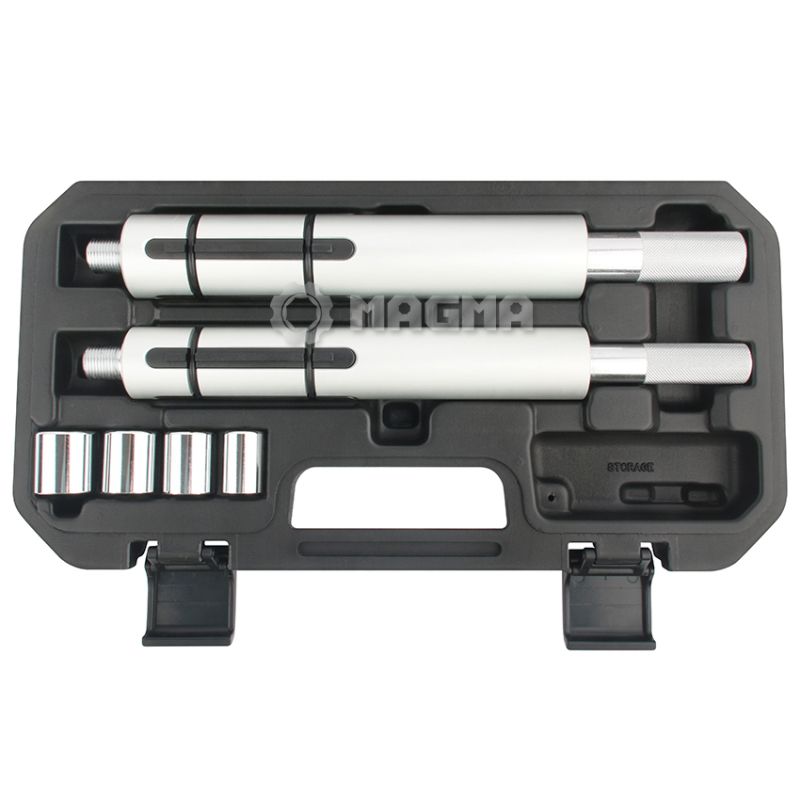

6 Pcs Truck Clutch Alignment Tool Kit, 51136
Professional 6-piece heavy-duty clutch centering tool set specially designed for commercial vehicles and trucks with single or double disc clutches. Provides a flawless alignment to the splines of the clutch disc and pilot bearing.
Made in China
Quick Buy
6 Pcs Truck Clutch Alignment Tool Kit, 51136
Engineered for heavy commercial vehicles, tractors, and trucks, this tool kit allows for fast and accurate alignment of the flywheel pilot hole with the clutch drive plate. The expanding mandrels with screw-action adjustment ensure a snug fit inside the clutch hub, preventing misalignments during installation.
Technical Specifications:
• Total Pieces: 6 pcs
• Suitability: Trucks, buses, and commercial vehicles with single or double disc clutches
• Centering Sleeves (Pilot Bearing): Φ20, 25, 27, 30mm
• Clutch Hub Interior Application Range:
- Mandrel 1: Φ36 to 45mm inside diameter
- Mandrel 2: Φ45 to 52mm inside diameter
• Storage: Heavy-duty blow-molded carrying case
Made in China
Code: 506185
International shipment available. Please ask for price.
-
Lenght:37 cm
-
Width:21 cm
-
Height:7 cm
-
Gross weight:3.400 kg
